High-resolution sensor array

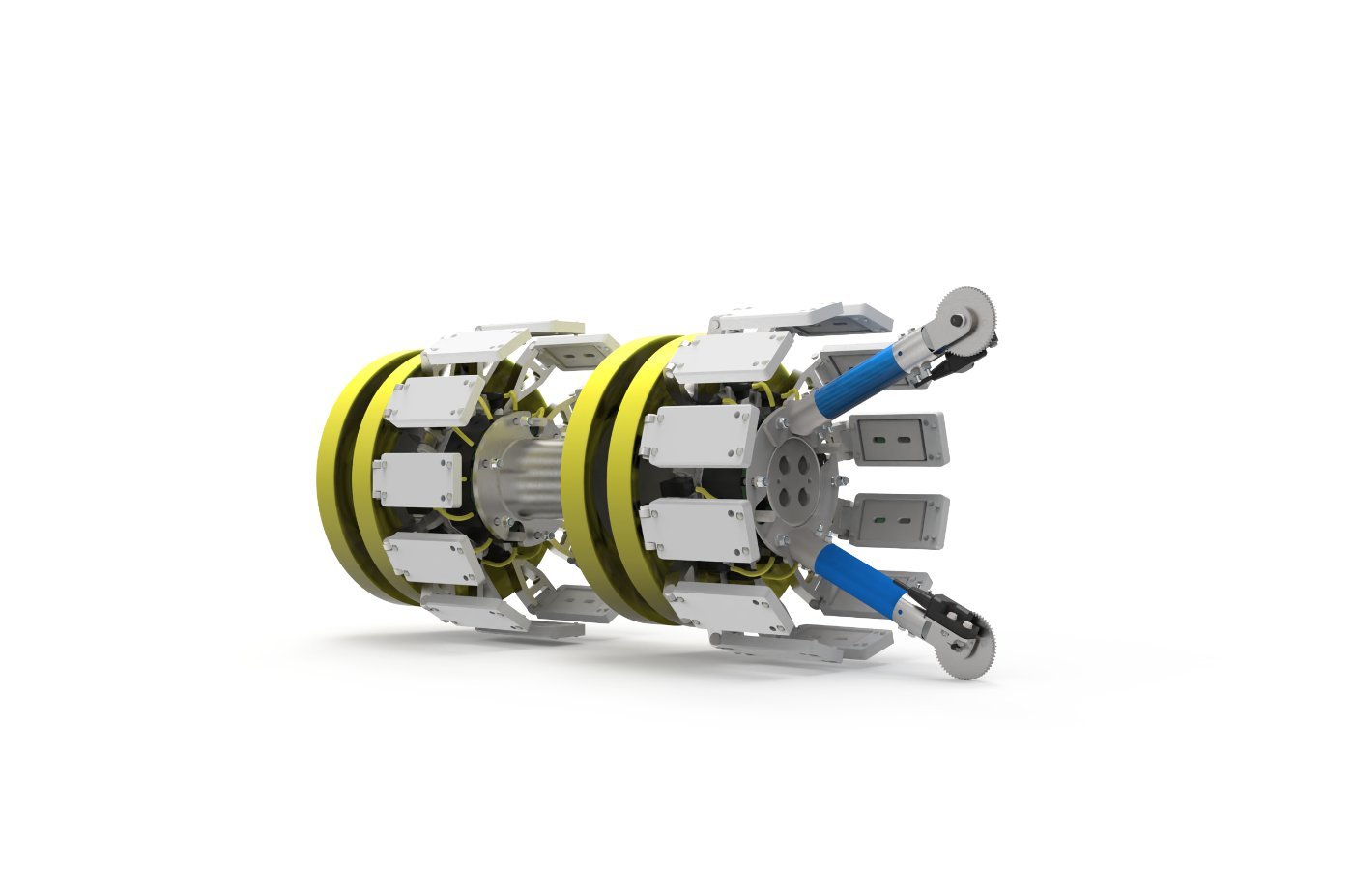

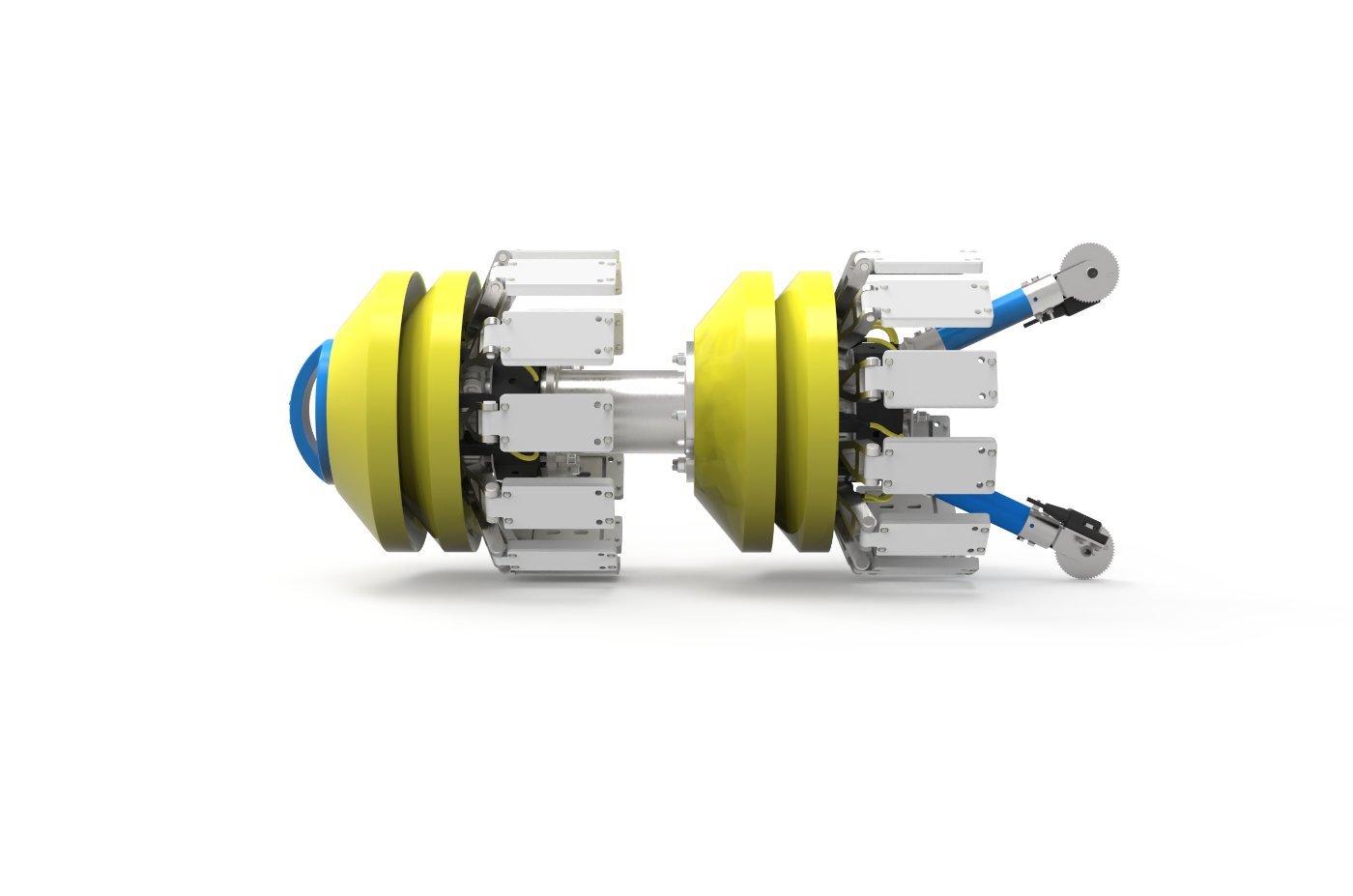

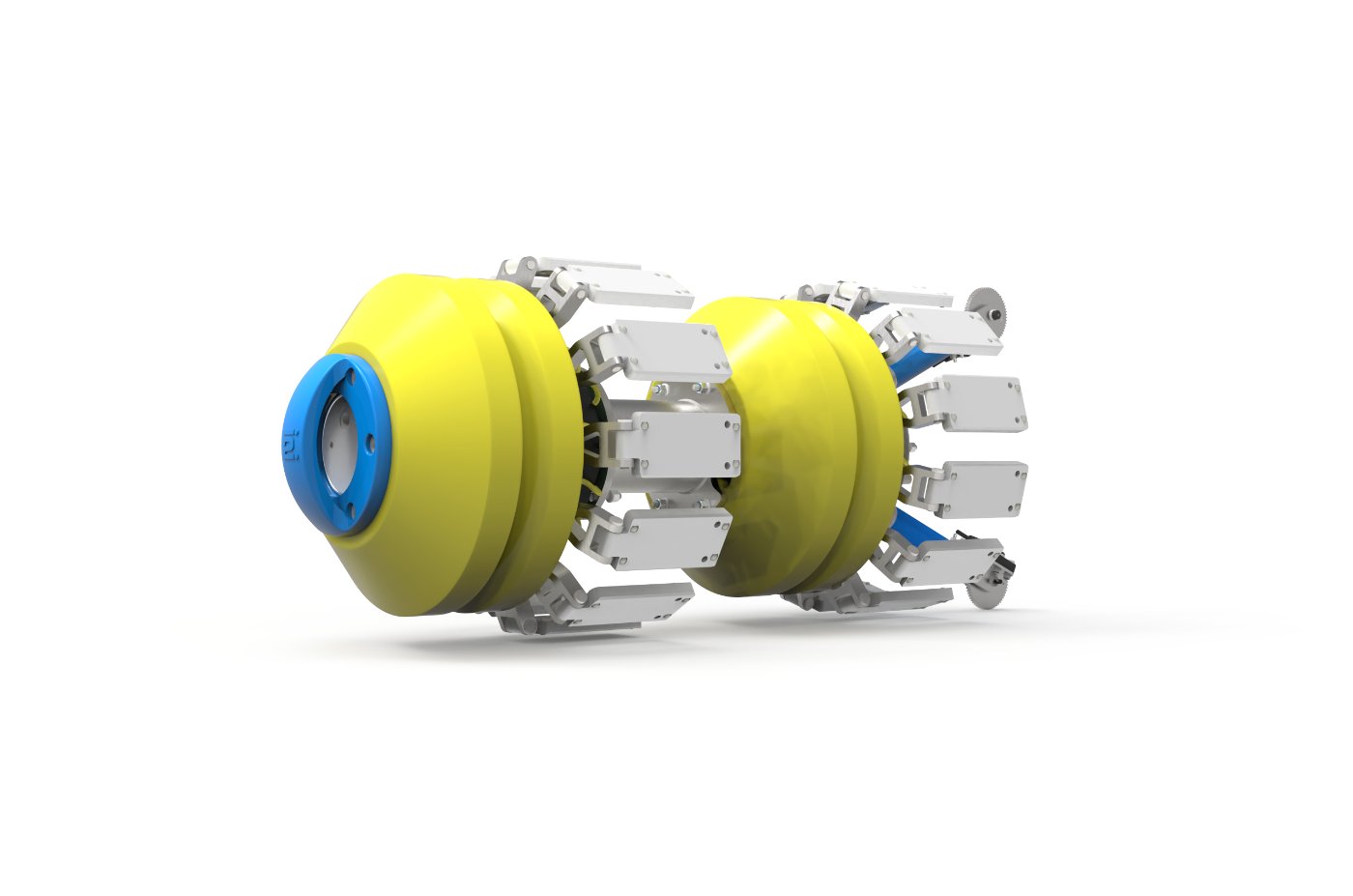

Pioneer®

Our highest-resolution tool. 192 receiver sensors where an equivalent eddy current tool carries 24 — with signal amplitude giving an indication of depth.

Size range: 3" – 48"
Bend passing: 1.5D
Medium: Any

Capability

Single-module tool carrying UT or EC sensor packages. Manages multiple ID changes — 12 inch to 10 inch — and inspects both sizes in one run.

Remains a single module inspection tool, designed for multiple runs on rechargeable battery packs.
Carries a range of sensor packages — UT and EC — on the same tool body.
Manages multiple ID changes in one run and inspects both diameters.
Only 1 bar differential required to move the tool; passes 1.5D bends as standard.
Detects internal and external metal loss, kinks, dents and deformation.

Specification

Size range	3" – 48"
Main technology	High-resolution sensor array
Standard sensors	IMU, odometer
Optional	Caliper, tracker
Medium	Any
Pipe material	Steel
Coverage	Internal
Bend passing	1.5D
Minimum passage	30% reduction
Operating temperature	−10°C to 80°C
Velocity range	0.2 – 7 m/s
Differential required	1 bar
