Ultrasonic
UT SmartFoam®
The alternative to EC tools where you need through-wall thickness measurement. Close sensor proximity to the wall allows inspection speeds up to 5 m/s.
- Size range
- 10" – 48"
- Bend passing
- 1.5D
- Medium
- Liquid
Capability
SmartFoam with UT sensors for through-wall thickness measurement — internal and external. Phased array version completing 2026.
- Gives through-wall thickness measurement, internal and external.
- Caliper function for ID, dent and deposit mapping on the same run.
- Phased array version complete by end of 2026.
- Line must be oil or liquid filled; tool speed is more regulated and a technician is required onsite.
Specification
| Size range | 10" – 48" |
|---|---|
| Main technology | Ultrasonic |
| Standard sensors | IMU, odometer |
| Optional | Caliper, tracker |
| Coupling medium | Liquid |
| Pipe material | Steel, concrete-lined, composite, non-metallic |
| Coverage | Internal & external |
| Bend passing | 1.5D |
| Inspection speed | Up to 5 m/s |
| Operating temperature | −10°C to 60°C |
Views

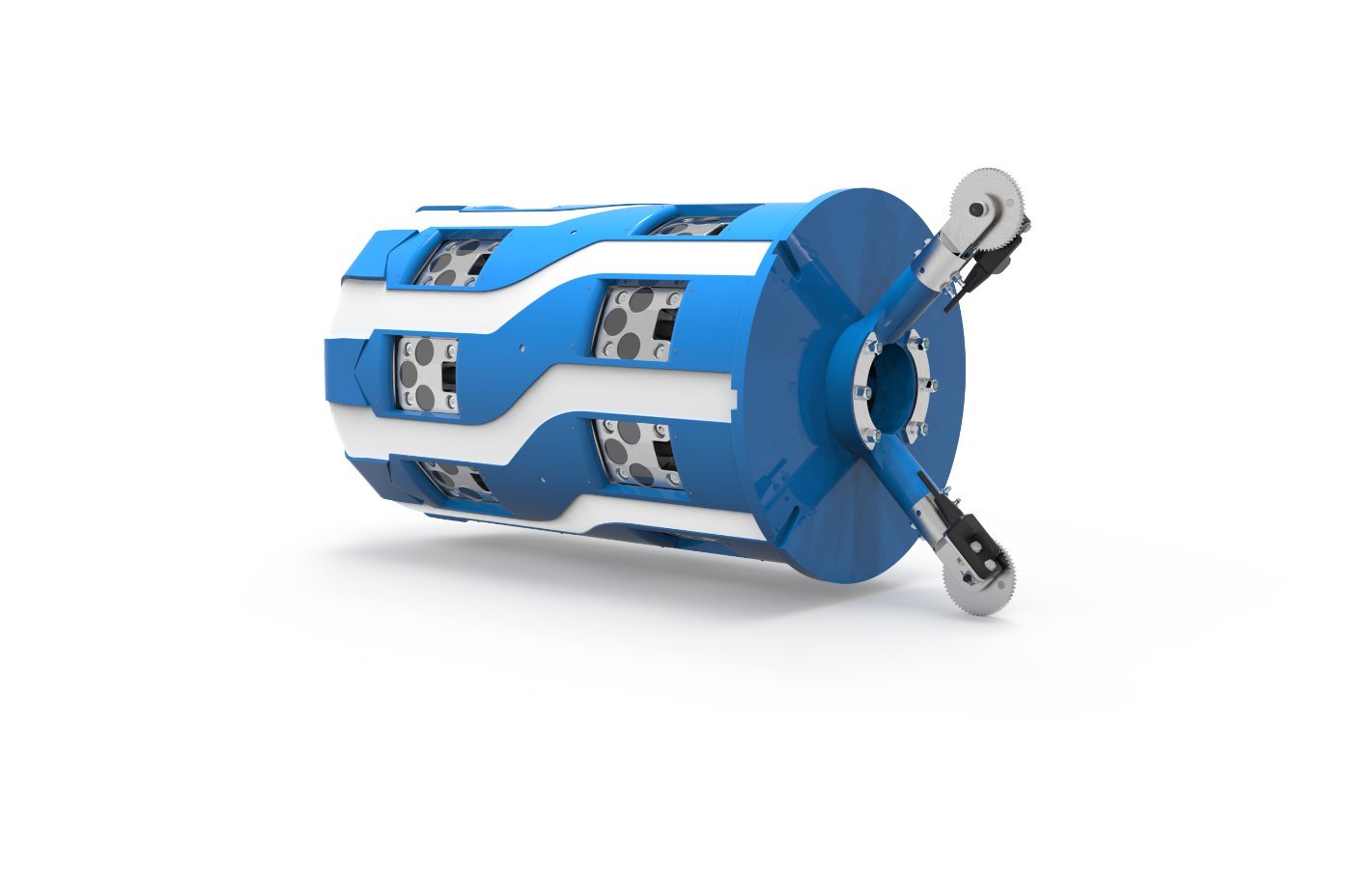

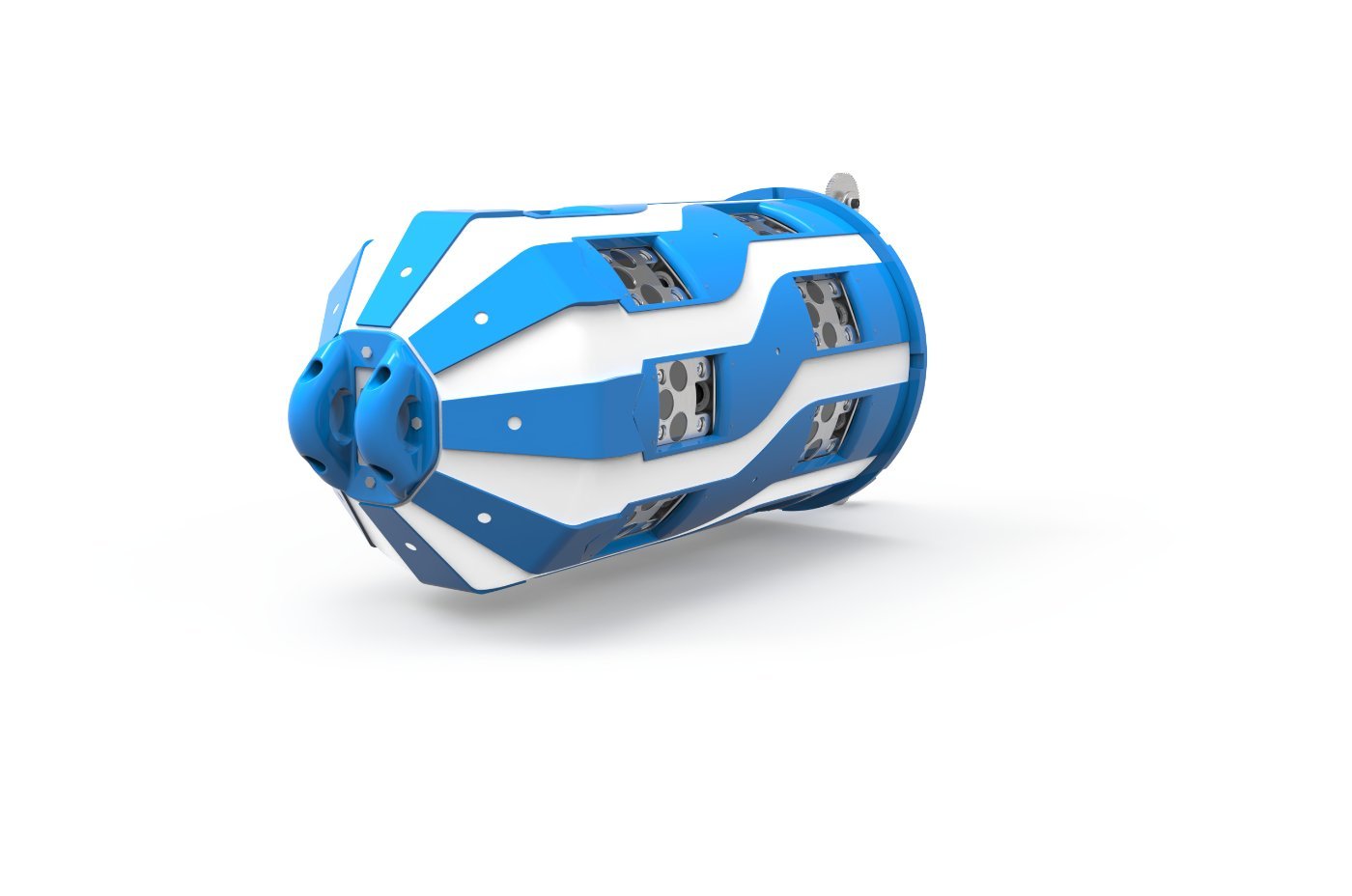

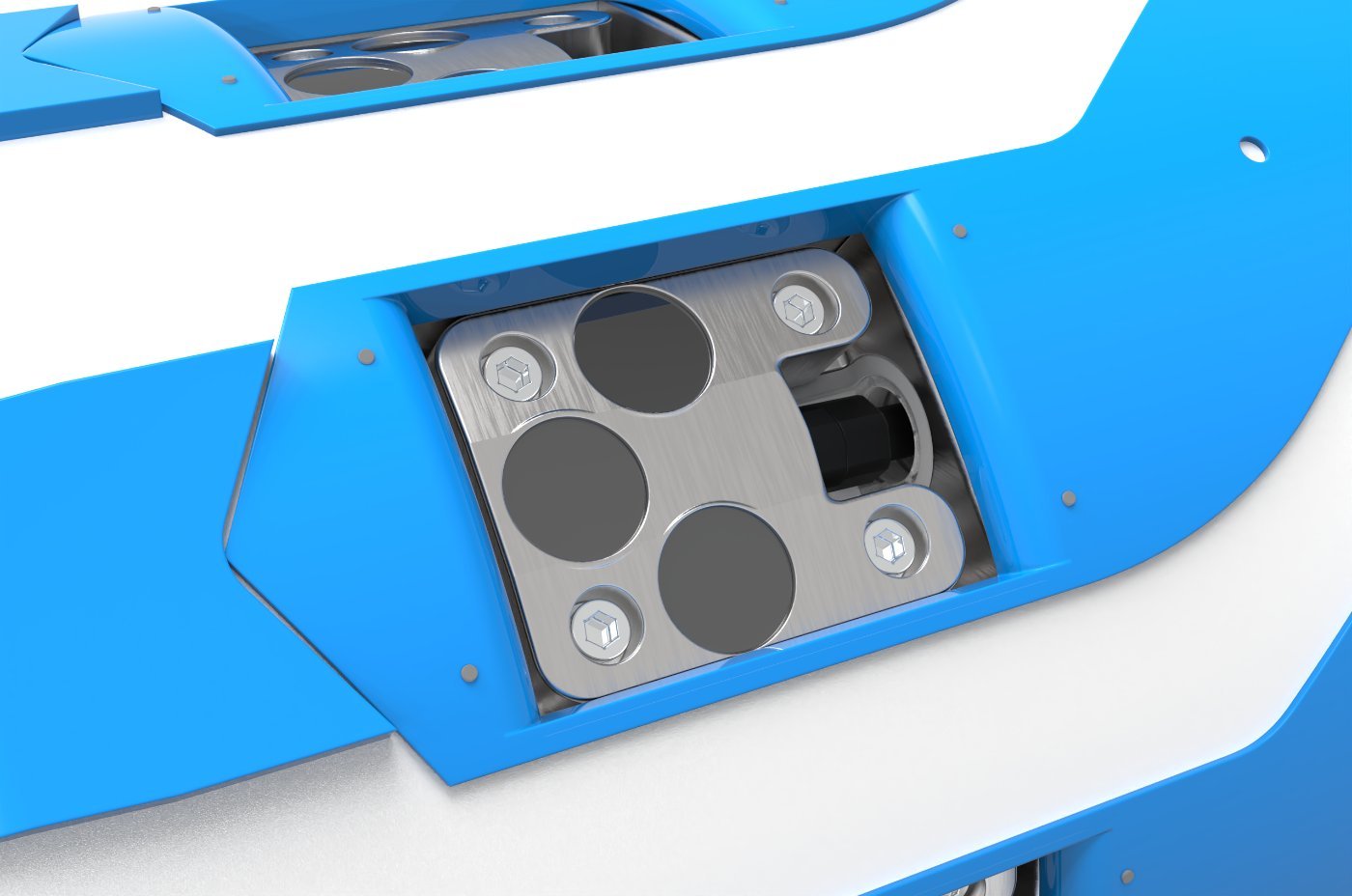

Engineering renders
Request the UT SmartFoam® data sheet
Full sensor layout, resolution tables and reporting samples.
