Eddy current
EC SmartFoam®
Proven in 200,000 bbl/d deepwater pipelines. A low-risk, high-value solution for lines with heavy deposits or potential ID reductions that cannot afford a stuck pig.
- Size range
- 6" – 48" (bodies to 90")
- Bend passing
- 1.5D
- Medium
- Any
Capability
An i2i patent: runs like an industry foam or poly pig, inspects like a smart pig. The foam body dampens signal, so data quality is exceptionally good.
- Made to any size very quickly, from 8 inch (203 mm) up to 90 inch.
- Odometer, IMU and caliper function in an all-in-one design.
- Dual density foam passes 40% ID restrictions; only 7 psi differential to pig the tool.
- Electronic units swap between different foam bodies after each run.
- Deliverable includes full internal inspection for metal loss, deposit profiling and route mapping.
Specification
| Size range | 6" – 48" (bodies to 90") |
|---|---|
| Main technology | Eddy current |
| Standard sensors | IMU, odometer, caliper |
| Optional | Tracker |
| Medium | Any |
| Pipe material | Any |
| Coverage | Internal |
| Bend passing | 1.5D |
| ID restriction | Up to 40% (dual density) |
| Differential required | 7 psi |
| Operating temperature | −10°C to 80°C |
Views

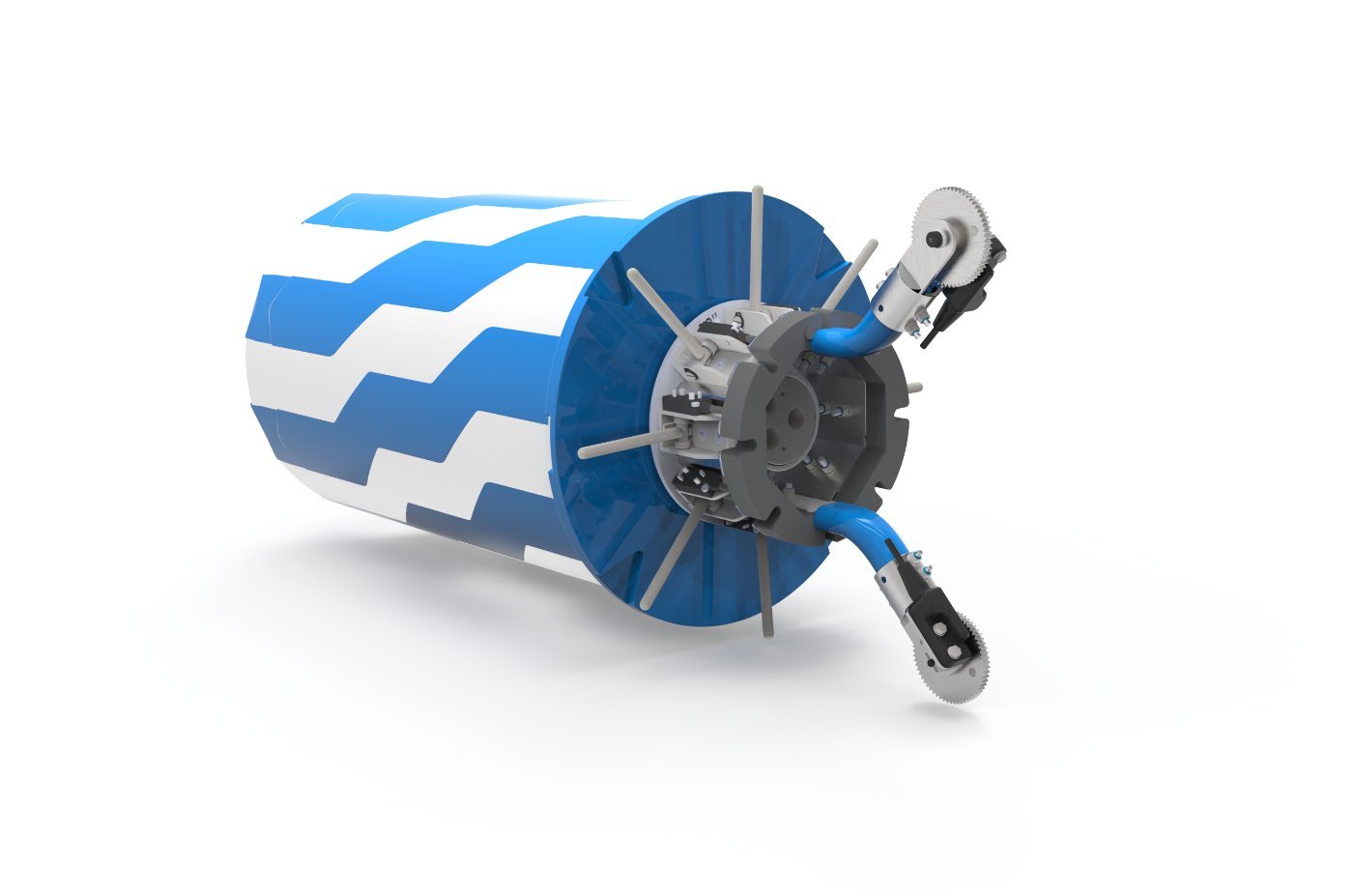

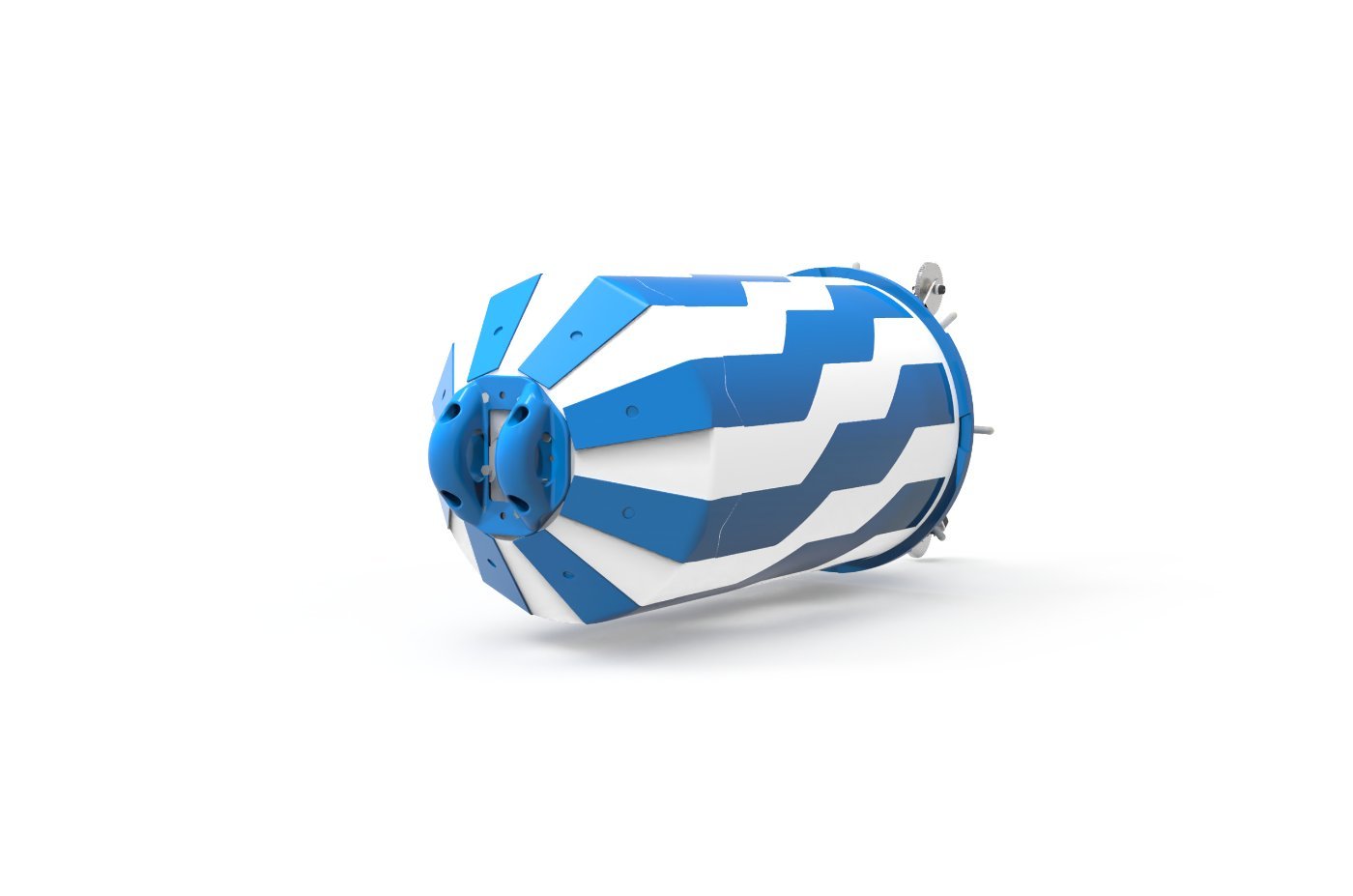

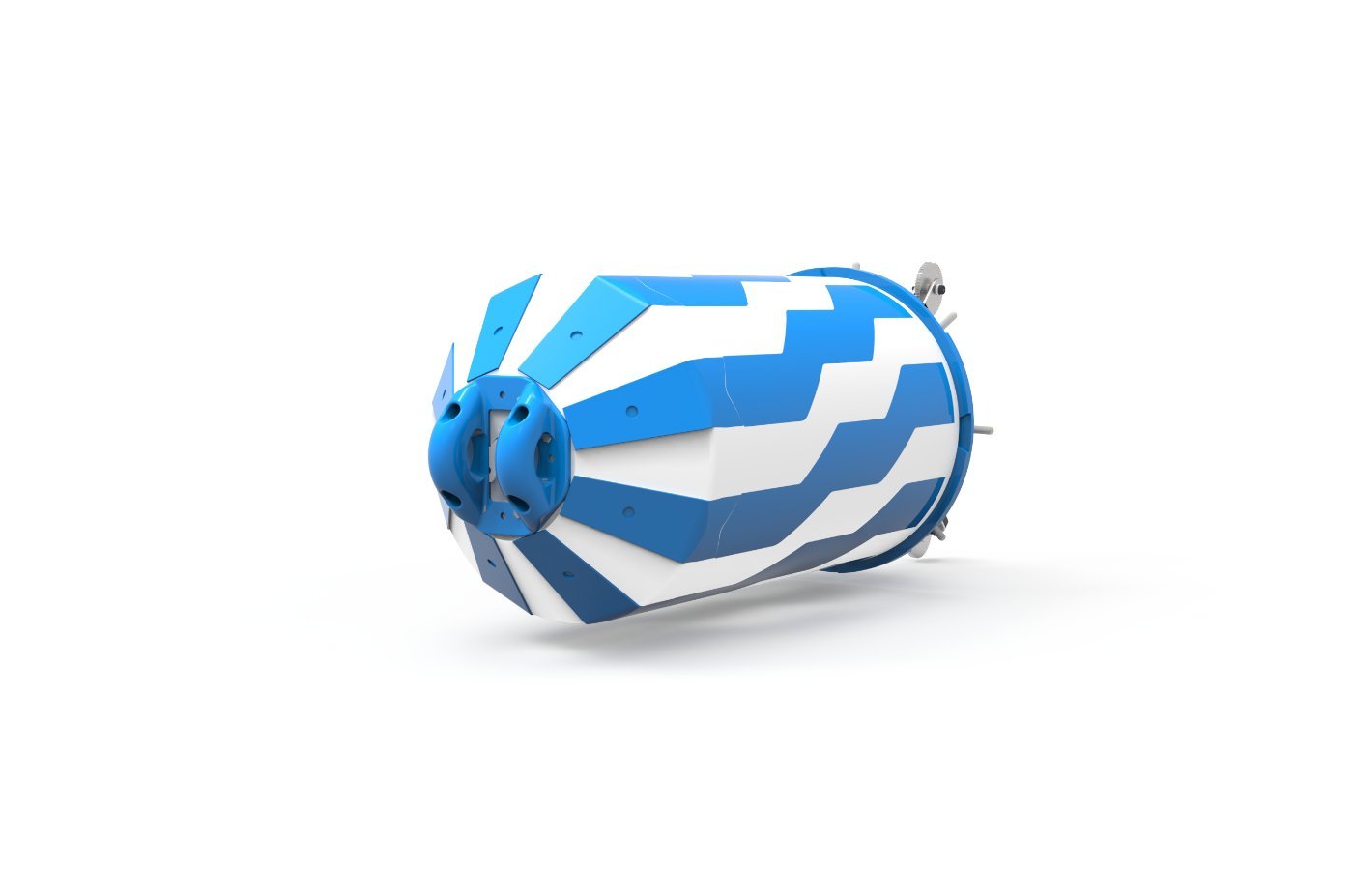

Engineering renders
Request the EC SmartFoam® data sheet
Full sensor layout, resolution tables and reporting samples.
